Chart Display Modes

Modified on Wed, 17 May 2023 at 11:36 AM

By default, the ATAS platform opens a candlestick charthowever, you can also choose any template from 6 chart display modes by using one of the following options:


1. Left-click on the icon on the chart menu bar and select the desired display mode in the pop-up menu.

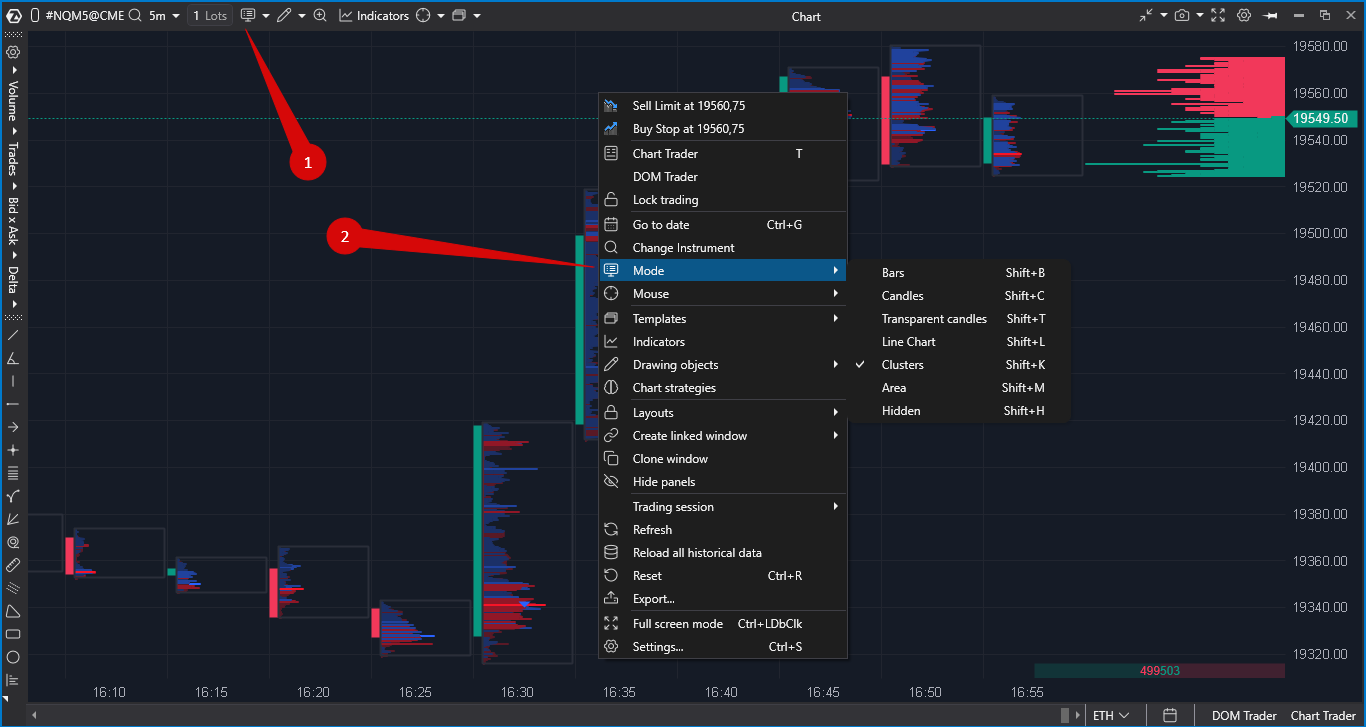

2. Use the context menu by right-clicking on the chart and select the desired display mode in the pop-up menu.





Let us consider these modes in more detail.





Bars and candles are standard charts for the classical analysis. They are built on the basis of four data types (closing, open, high and low of a range). Bars differ from candles only in their appearance.



Bars.





Candels








Transparent Candles are a type ofcandles. Their main feature, as the name suggests,is their transparency. Often,a variety of indicators and drawing objects must be applied to a chartin thiscase, clarity is achieved by using this chart display mode so as not tooverload the chart with color.






Line Chart: the simplest chart in termsof building, which is based on the close price for a selected range. This chartcarries very little information content but is convenient for displayinggeneral trends, especially over an extended period of several months or evenyears.







Clusters are the relatively new type of analytical chartsin the west, this stock information display mode is called the Footprint chart. Clusters represent digital or graphical display of data on performed sells and buys inside each bar at every price level.



Please note that the cluster display mode features an additional vertical menu on the left of the chart window with various options for the display of clusters:


Volume


Trades


Time (in seconds)


Bid x ask: bids and asks separately


Delta: the difference between bids and asks










Let us consider cluster chart display options:


The following are some examples of the display of these options of cluster chart settings.


Volume.










Trades











Time.







Bid/Ask.







Delta.






Market Profile: this is actually a cluster chart subtypehowever, it is shown as a horizontal volume histogram.


Please note:By default, the reduction of the chart scale will change the cluster chart to a candle chart, and vice versa.This is done for conveniencebut this option can be disabled if required by using settings.

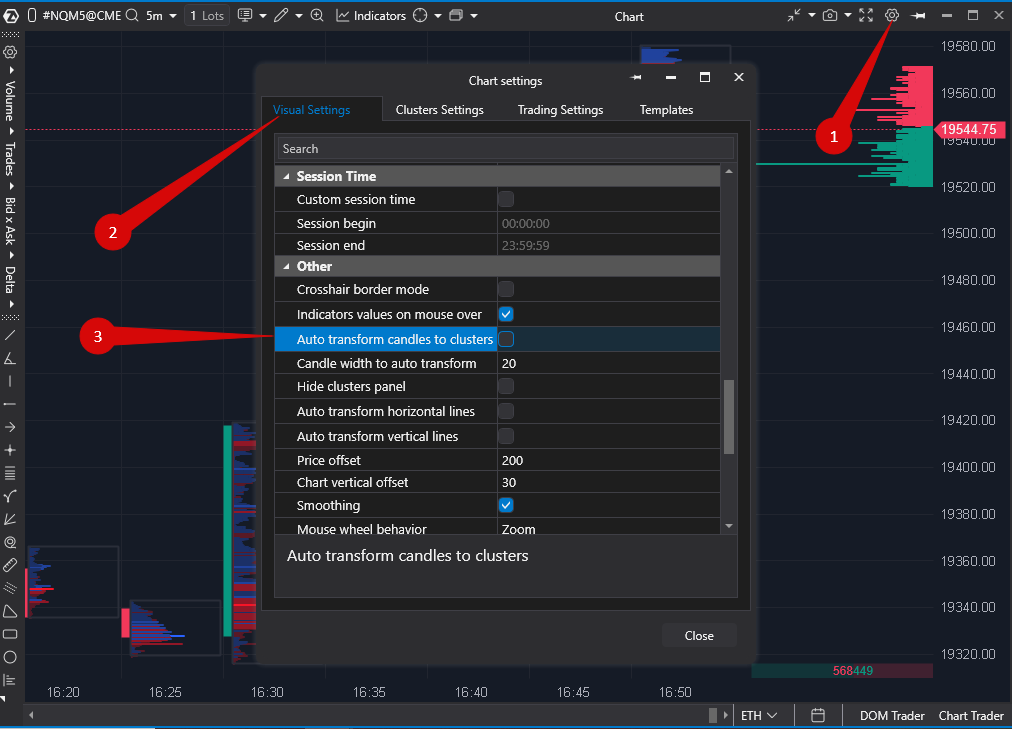

To disable this option:

1. Click on the settings icon.

2. In the settings window that opens to the left, select the Visual Settings tab.

3. After that, uncheck in the Auto Transform Candles to Clusters box in the Other section.








You can find more information about chart settings here:
