The ATAS platform offers the option to save chart settings as templates, enabling users to quickly load and apply their preferred configurations.

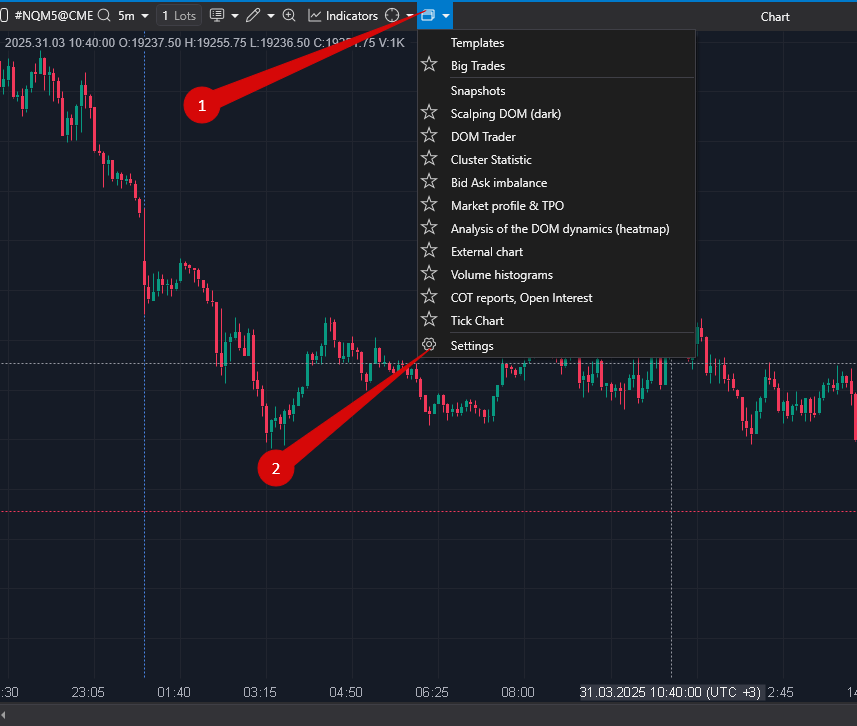

To save chart settings, simply click on the highlighted icon in the chart menu.
Next, the Templates/Snapshots window will open.
This window consists of 2 tabs:
Templates: this tab includes all the color settings of the chart as well as indicators.
Snapshots: this tab includes a chart template, all the graphical elements on the chart as well as the type and the timeframe of the chart.
Saving configuration to Templates/Snapshots.

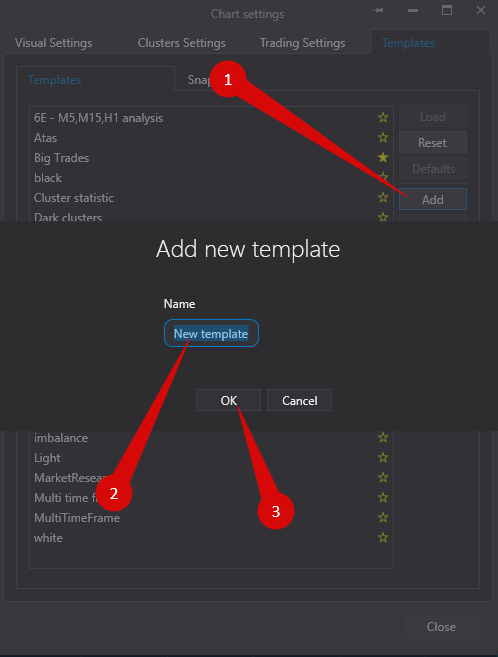

To save configurations to a template/snapshot:
1. Click Add
2. Enter the name of the template in the field that appears.
3. Click Ок.
Let's have a look at the functions of all the buttons in this window:
Load | The selected template is applied to the chart |
Reset | Reset chart settings to default |
Default | When saving a template by default, each subsequent chart will open with this template applied |
Add | Create a new template |
Save | Save chart settings to the selected template |
Delete | Delete the selected template |
Rename | Rename the selected template |
Export | In this case, you need to specify/create a folder in the desired directory where the template will be saved |
Import | Select the file from which the template will be imported |
The template will be saved in the folder C:\Users\username\Documents\ATAS\Chart\Templates.
The snapshot will be saved in the folder C:\Users\Username\Documents\ATAS\Chart\Snapshots.
There is no option to set a default download for snapshots.
