Drawing objects management

The ATAS platform has the function of adding various graphical objects on a chart.

To view and to select available drawing objects:

• Click on the icon in the chart bar menu.
• Use hot keys.

By default, hotkey settings have been already set in the platform, but you can change them if necessary. More information about this is available here.

Next, a window that displays all the available elements will open.

If you click the right mouse button on any drawing object, the following menu will appear:

Here you can make object Global, Locked, or Hidden.

Description of drawing objects functions.

The functions described below are applicable to all the elements of drawing objects.

Delete Selected - remove only the selected drawing objects in the chart.

Delete All - remove all the drawing objects in the chart.

Select All - select all the drawing objects in the chart.

Copy All - copy all the drawing objects in the chart.

Copy Selected - copy only the selected drawing objects in the chart.

Paste - past only the copied objects in the chart.

Undo - undo the last action.

Editing the elements of drawing objects - to edit the desired element of drawing objects requires, it must be selected by left-clicking once on the selected element. After that, it will be possible to increase/decrease and move the element to any area of the chart and to open visual configuration of the element by right-clicking the mouse.

Most of the visual settings such as color, style, width, and display of the object behind the chart are the same for all the elements therefore, the descriptions of visual settings for the elements contain only description of the settings that this particular element has.

Saving the visual settings:

To save the default settings, use the Save As Default button.

To return to the default settings, use the Reset button.

To remove an element, use the Remove button.

To apply the settings, click the OK button.

Objects List

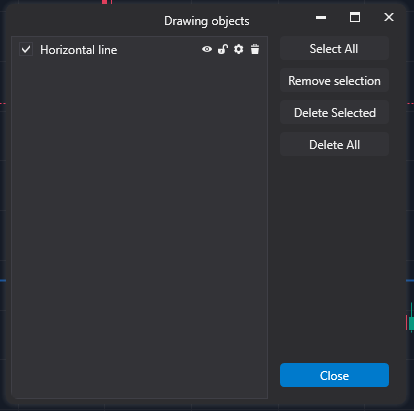

This window allows you to see all the elements of the drawing objects applied to the chart. You can also manage them:

Select All.

Remove selection.

Delete Selected.

Delete All.
